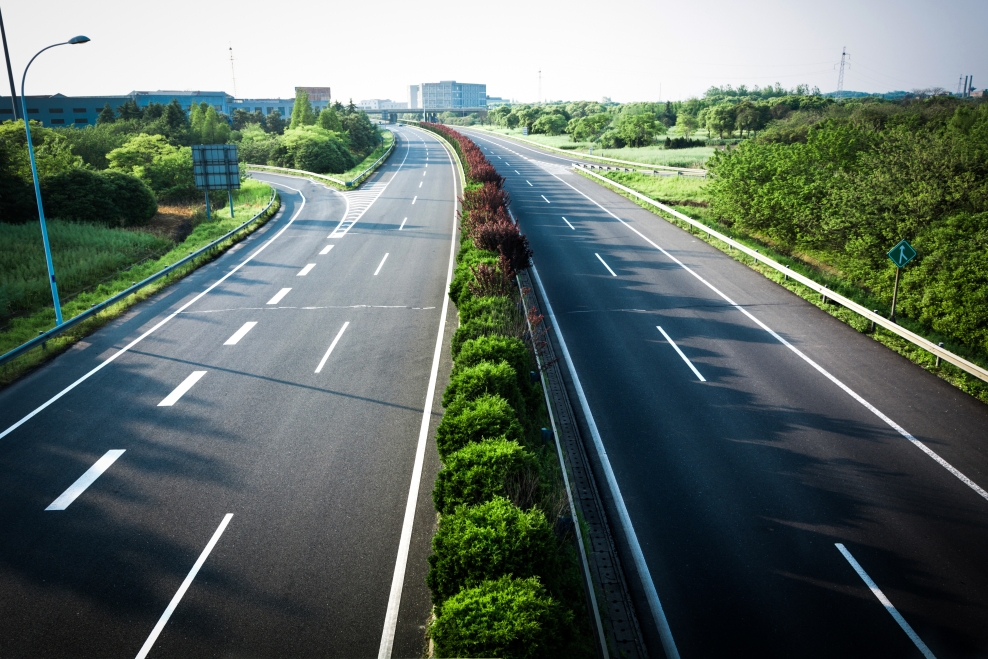

Road safety infrastructure has evolved dramatically over the decades, but few innovations have proven as consistently effective as metal beam crash barriers. These engineered steel guardians represent the backbone of highway safety systems worldwide, protecting millions of lives through proven impact absorption and vehicle redirection capabilities. For infrastructure professionals, highway planners, and safety engineers, understanding the comprehensive landscape of metal beam crash barrier solutions is essential for creating safer transportation networks.
Metal beam crash barriers encompass a family of semi-flexible safety systems designed to contain and redirect errant vehicles while minimizing impact severity. Unlike their concrete counterparts, these steel-based systems provide controlled deformation that absorbs collision energy, reducing forces transmitted to vehicle occupants while maintaining structural integrity for continued protection.
The fundamental design principle centers on energy management through progressive deformation. When a vehicle impacts a metal beam barrier, the steel beams bend and flex in a controlled manner, dissipating kinetic energy over an extended time period and distance. This gradual energy absorption significantly reduces peak impact forces compared to rigid barriers, resulting in lower injury rates and reduced vehicle damage.
Modern metal beam crash barriers utilize high-strength galvanized steel, typically ranging from 2.67mm to 4.0mm thickness depending on application requirements. The galvanization process applies protective zinc coatings of 550-610 g/m², ensuring exceptional corrosion resistance and service life exceeding 25-30 years in most environmental conditions.
W-beam barriers feature the distinctive "W" cross-sectional profile that gives them their name. These barriers represent the most widely deployed crash barrier type globally, offering optimal balance between cost-effectiveness and performance. Standard specifications include 312mm width with 83mm corrugation depth, providing excellent energy absorption characteristics for passenger vehicles and light trucks.
Key applications include highways, rural roads, bridge approaches, and median barriers where moderate containment levels are required. W-beam systems excel in environments with mixed traffic and moderate speeds, making them ideal for most highway applications.
Thrie beam barriers feature three corrugations instead of the two found in W-beam systems, creating a deeper profile (typically 85mm depth) that provides superior containment capabilities. This enhanced design offers 40-50% greater section modulus compared to W-beam systems, making them ideal for high-risk locations requiring maximum vehicle containment.
These barriers are specifically engineered for expressways, bridge structures, and locations with heavy truck traffic or elevated roadways where failure consequences would be severe. The additional corrugation provides enhanced structural stiffness while maintaining the flexibility needed for controlled energy absorption.
Double-faced metal beam barriers provide protection from both sides, making them ideal for median installations separating opposing traffic flows. These systems can utilize either W-beam or Thrie beam profiles depending on containment requirements and are often specified for divided highways and expressways.
Specialized metal beam systems designed for pedestrian protection feature lower heights (typically 1100-1400mm) and enhanced visibility features. These barriers protect walkways, transit stations, and urban areas while maintaining aesthetic appeal through powder coating options and architectural integration.
Material Requirements:
Base steel: Fe360/Fe410/Fe510 grades conforming to IS 5986/2062/10748
Minimum yield strength: 235-355 MPa depending on grade
Tensile strength: 360-510 MPa
Hot-dip galvanization: 550-610 g/m² zinc coating
Post dimensions: Typically 150x75x5mm or 200x100x6mm sections
Crash Test Compliance:
Metal beam crash barriers must meet rigorous testing standards including EN 1317, MORTH specifications, and AASHTO M180 requirements. Testing evaluates containment levels, deflection characteristics, and vehicle redirection capabilities under controlled impact conditions using vehicles ranging from 900kg cars at 100 kmph to 13,000kg trucks at 70 kmph.
Performance Classifications:
Containment Level H1: Passenger cars and light vehicles
Containment Level H2: Heavy vehicles and trucks
Containment Level H3: Articulated trucks
Working Width: W1-W8 classifications based on deflection requirements
Proper installation represents the foundation of barrier effectiveness, requiring specialized expertise and adherence to engineering specifications.
Phase 1: Site Assessment and Planning
Installation begins with comprehensive site evaluation including soil analysis, drainage assessment, and geometric requirements. Professional surveyors establish precise alignment and grade requirements while traffic control measures ensure worker safety during construction.
Phase 2: Foundation and Post Installation
Steel posts are installed at specified intervals (typically 2-3 meters center-to-center) using driven or concrete-anchored methods depending on soil conditions. Post depth and alignment must meet engineering specifications to provide adequate structural support during impact events.
Phase 3: Beam Installation and Connection
Metal beams are connected using standardized splice joints with high-strength galvanized bolts. Each connection requires precise torque specifications and proper overlap distances to ensure continuous load transfer throughout the barrier system.
Phase 4: End Treatments and Quality Assurance
Proper end treatments prevent vehicle snagging while providing controlled energy absorption. Final inspection verifies alignment, connection integrity, and compliance with project specifications.
Research demonstrates that properly installed metal beam crash barriers reduce fatal and serious injury crashes by up to 40% compared to unprotected roadside hazards. They prevent vehicles from crossing medians, leaving roadways, or impacting fixed objects, directly translating to lives saved and families protected.
While initial installation requires significant investment, lifecycle cost analysis reveals metal beam barriers provide exceptional long-term value. Studies by transportation agencies show total lifetime costs 30-50% lower than concrete alternatives when considering construction, maintenance, and societal costs.
Metal beam barriers adapt to diverse geometric and environmental conditions including curved alignments, varying grades, and challenging terrain. This versatility makes them suitable for highways, bridges, industrial facilities, and urban environments.
Hot-dip galvanization provides exceptional corrosion resistance, requiring minimal ongoing maintenance. Annual inspections and occasional repairs typically suffice to maintain optimal performance, reducing lifecycle costs significantly.
Steel barriers are fully recyclable at end-of-life, supporting sustainable infrastructure practices. Their long service life also reduces environmental impact compared to systems requiring frequent replacement.
Metal beam crash barrier costs in India typically range from ?800 to ?2,500 per meter depending on specifications, location, and project scale. This investment delivers measurable returns through:
Accident Reduction Benefits:
35-45% reduction in fatal crashes
25-35% reduction in injury severity
Prevented property damage exceeding initial investment
Reduced emergency response costs
Insurance and Liability Benefits:
Lower insurance premiums for highway operators
Reduced litigation exposure
Decreased public safety liability
Measurable risk mitigation
Traffic Flow Benefits:
Reduced accident-related congestion
Faster incident clearance times
Improved highway capacity utilization
Enhanced travel time reliability
Premium metal beam crash barriers undergo extensive testing to verify performance characteristics. Testing protocols evaluate impact response, structural integrity, and long-term durability under diverse conditions.
Critical Quality Indicators:
Crash test certification under international standards
Material traceability from certified steel suppliers
Galvanization quality meeting corrosion standards
Dimensional accuracy ensuring proper installation
End-to-end quality documentation
While metal beam barriers require minimal maintenance, established protocols ensure optimal long-term performance:
Annual Inspection Requirements:
Verify structural integrity and alignment
Check connection tightness and corrosion levels
Assess post stability and foundation conditions
Document any damage requiring attention
Evaluate end treatment effectiveness
Preventive Maintenance Activities:
Clear debris accumulation around installations
Touch up coating damage promptly
Maintain adequate deflection clearance
Ensure proper drainage functionality
Choosing appropriate metal beam crash barriers requires careful consideration of multiple factors:
Traffic Characteristics:
Vehicle mix and weight distributions
Operating speeds and traffic volumes
Accident history and risk assessment
Future traffic projections
Geometric Factors:
Roadway alignment and grades
Available clear zones and constraints
Bridge and structure requirements
Median width and configuration
Environmental Considerations:
Climate conditions and corrosion exposure
Maintenance access and capabilities
Aesthetic requirements and community preferences
Budget constraints and lifecycle costs
The metal beam crash barrier industry continues advancing through improved materials, enhanced designs, and smart technologies. Recent innovations include high-performance steel alloys, optimized end treatments, and integrated monitoring systems for real-time condition assessment.
Research focuses on developing barriers with enhanced performance characteristics while reducing environmental impact through improved recycling processes and sustainable manufacturing practices.
Metal beam crash barrier installation requires specialized expertise to ensure optimal safety performance. Professional installers provide:
Engineering knowledge of proper specifications
Safety expertise for highway work zones
Quality assurance through systematic procedures
Compliance verification with applicable standards
Comprehensive warranty protection
Conclusion: Investing in Proven Safety
Metal beam crash barriers represent one of the most cost-effective safety investments available to highway agencies and infrastructure developers. Their proven track record of saving lives, combined with exceptional durability and cost-effectiveness, makes them indispensable components of modern transportation infrastructure.
For organizations committed to highway safety excellence, metal beam crash barriers offer proven technology that protects lives, reduces liability, and delivers measurable return on investment. Whether you need W-beam systems for standard highway applications or Thrie beam barriers for high-risk locations, professional specification and installation ensure optimal performance.
