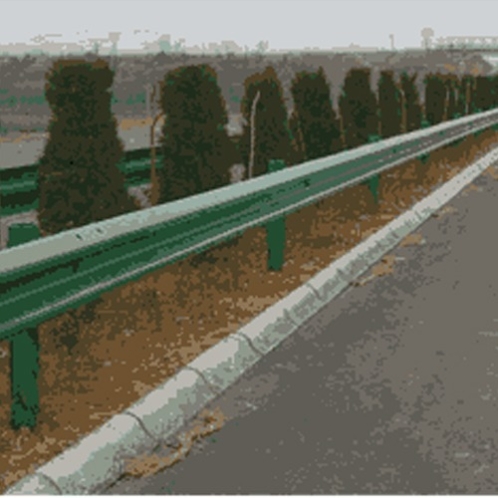

W Beam Highway Crash Barrier

W Beam Highway Crash Barrier

Om Wire & Wire Products Industries reckoned as one of the largest Manufacturers, Exporters and Suppliers of high quality W Beam High Crash Barrier, that are made as per international standard of quality. The company has been supplying high quality high crash barriers to reputed contractors in the country. We have Metal Highway Crash Barriers (Guard Rail) available in almost all the sizes. This guard rails are very necessary to install on road side or highway side for safety to save lives of people.

Om Wire & Wire Products Industries understands how important is the lives of people and hence we introduce metal crash barriers that is made using superior quality steel to install on highways, bridges and flyovers for safety of vehicles and its passengers. W-Beam Highway Crash Barrier is highly demanded road safety system, which prevents the vehicles from rolling down the high embankments.

W-Beam Highway Crash Barrier Used In

Bridges

W Beam highway metal crash barrier is the best safety system to save lives by installing it across both sides of bridges.

Parking Lots

Metal Guard rail offers highly effective shielding in parking lots against such vehicle hazards as light poles, buildings, ditches, etc. Guard rail also provides added security against auto theft where fences have failed.

W-Beam Guard Rail / Benefits

In most situations, we recommend the use of W-Beam guard rail, the optimal choice for safety, strength, durability, and cost effectiveness.

Constructed of high-strength 12 gauge (Class A) or 10 gauge (Class B) steel and coated in rust-resistant zinc, W-Beam guard rail is available in standard 25' and 12' 6" lengths. Other lengths can be fabricated upon request. Standard centre punching is 12' 6" O.C., 6' 3" O.C., and 3' 3-1/2" O.C. with other options available.

W-Beam Guard Rail End Treatments / Benefits

W-Beam guard rail is also available with two protective options at the blunt end of the rail: flared end or question mark end. Flared ends provide rigid, straighter protection. Question mark ends are more curved and are used to avoid torn clothing and personal injury where there is pedestrian traffic.

Technical Specifications of W-Beam Highway Crash Barrier

  • Cold Roll formed
  • Raw material : ST 42/IS 5986 Fe 410/510 Grade steel
  • Available in different lengths and thickness to match customer requirements
  • Hot Dip Galvanized (550 GSM minimum)

Our range of two beam safety barrier includes

  • Crash barrier
  • Guardrails
  • W-profile
